50′ Custom Gate for Bird Construction Vancouver, BC

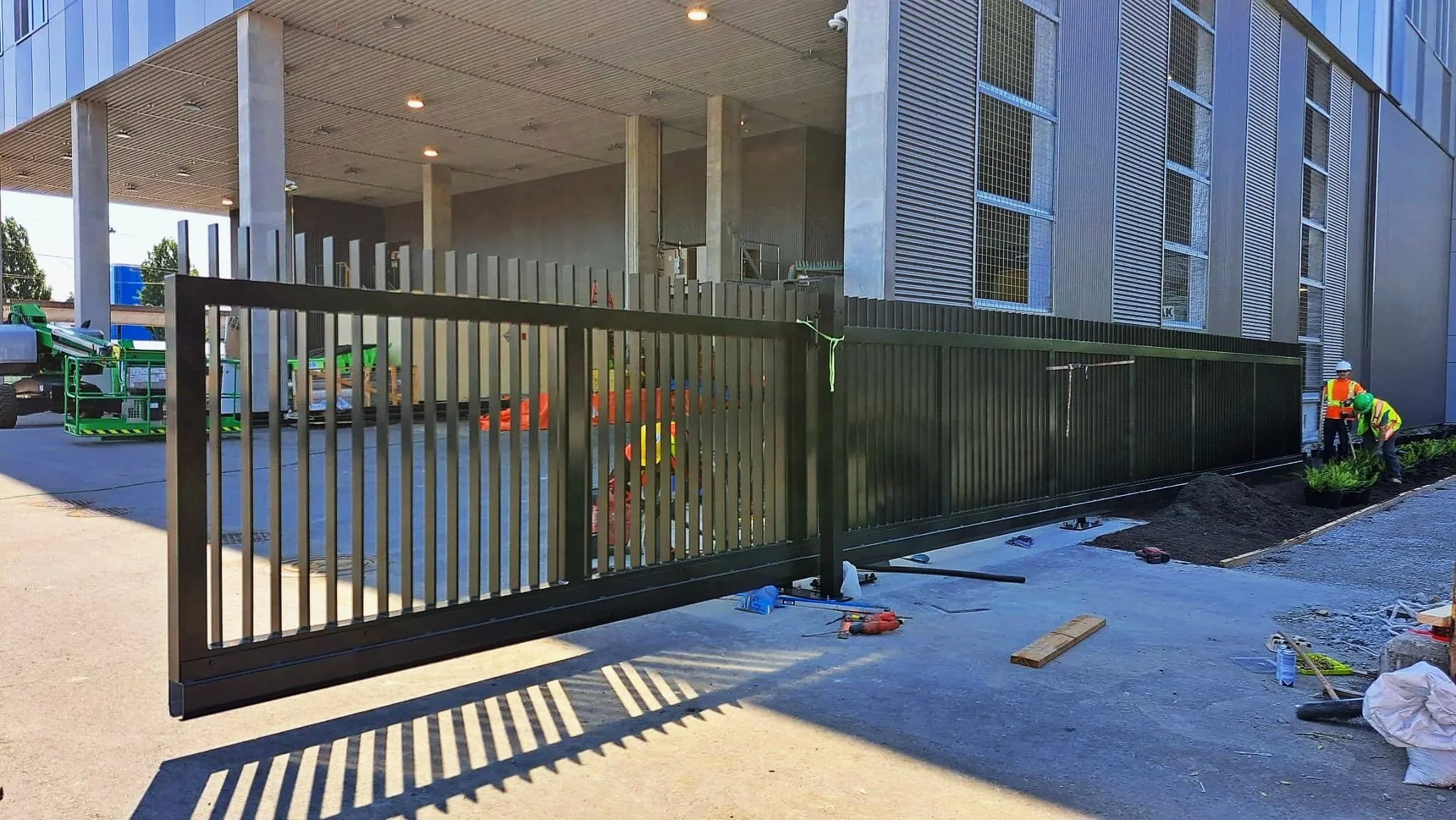

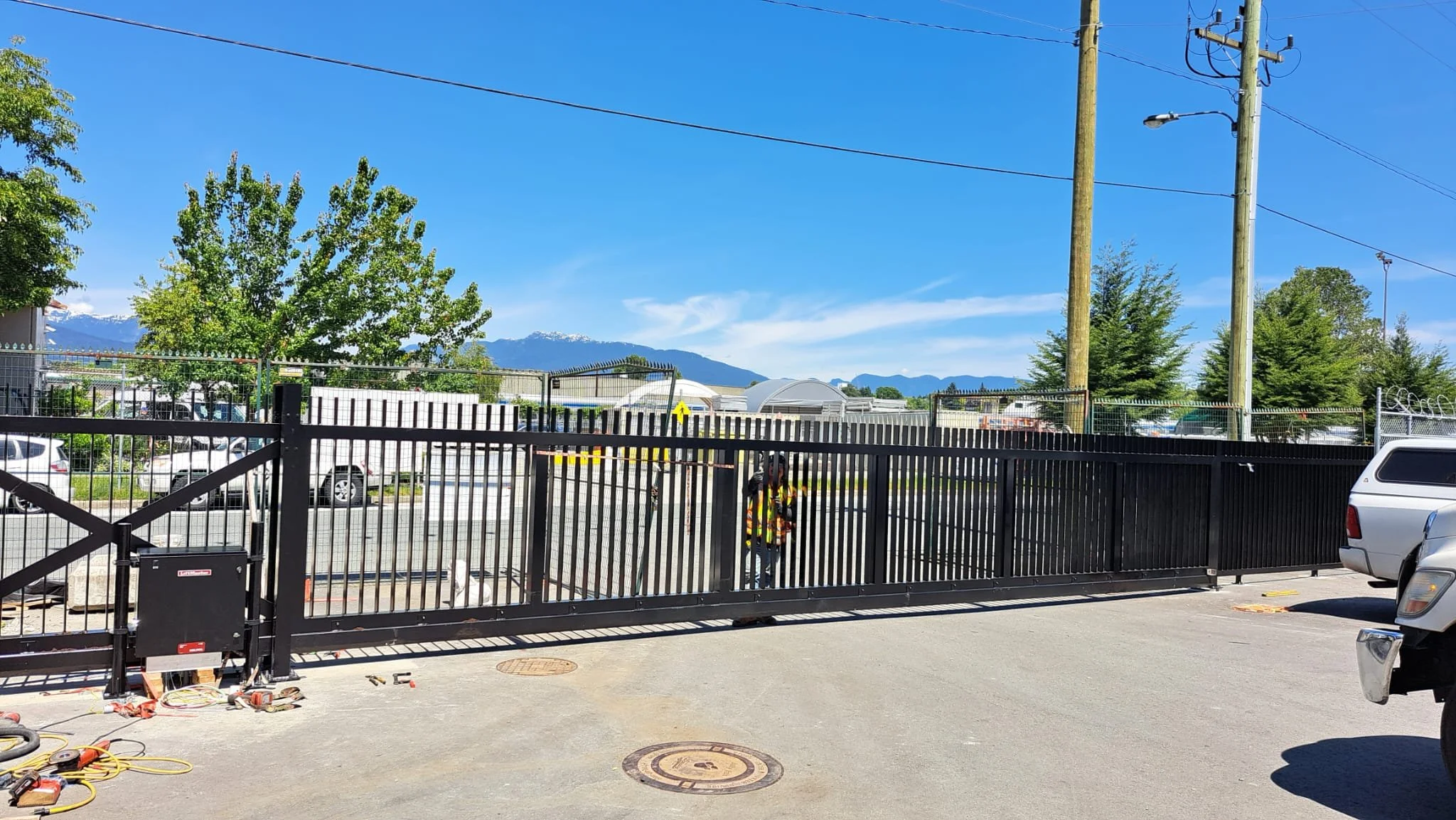

This sliding cantilever gate in Vancouver was engineered by Iron Age to provide exceptional performance, durability, and architectural style. This project showcases the installation of one of Vancouver’s longest architectural sliding gates — measuring 50 feet overall. Unlike the common chainlink or lightweight gates, this aluminum gate is built for performance, durability, and style, equipped with a full LiftMaster cantilever automation system.

Project Overview

Location: Vancouver, BC — 810 Evans Avenue
Application: Commercial (Bird Construction site)
Client: Bird Construction

Technical Highlights

* Gate Length: 35′ clear opening + 15′ cantilever = 50′ total span
* Approximate Weight: ~1500 lbs
* Materials Used:

As per following description:

Pickets: 3″x½”
Frame: 4″x4″ by 1/4″ wall thickness alum tubing
Bottom Channel: Galvanized steel
Finish: Powder coated in semi-gloss black
* Movement System: Fully motorized with LiftMaster IHSL24UL sliding cantilever system
* Bearing & Track System: No ground track — cantilever system with rollers anchored into concrete pads
